UTB, Long Tractor Service Repair Manual. EWD

UTB 445 S UTB 530 (Long) Service-Repair Manual Download

UTB Universal 445 445-V 445-L Service Manual Download

Long models are Universal (UTB) / Fiat Service Repair Manual Download

Long Tractors Identification

2 CYLINDER 260C, 310, 310DT, 310C, 320, 2310, 2260

3 CYLINDER 350, 360, 360C, 445, 445DT, 445SD, 445V, 460, 460DT, 460SD,

460V, 510, 510DT, 2510, 2510DTC, 2510SD, 2510SD-DTC,

2360, 2360DTC, 2460, 2460DTC, 2460SD, 2460SD-DTC

4 CYLINDER 550, 550DT, 560, 560DT, 560DTE, 610, 610DT, 610DTE, 610C,

2610, 2610DTC, 2610SD, 2610SD-DTC

Ford Tractor Model 2000, 3000, 4000, and 5000 Operator's / Service Manual Download

Information on the D115 engine is available in the Manual for ARO series cars. It describes the D127 engine, identical to the D115, both engines were installed on UTB, Long tractors.

ARO 24 Serice Repair Handbook Download

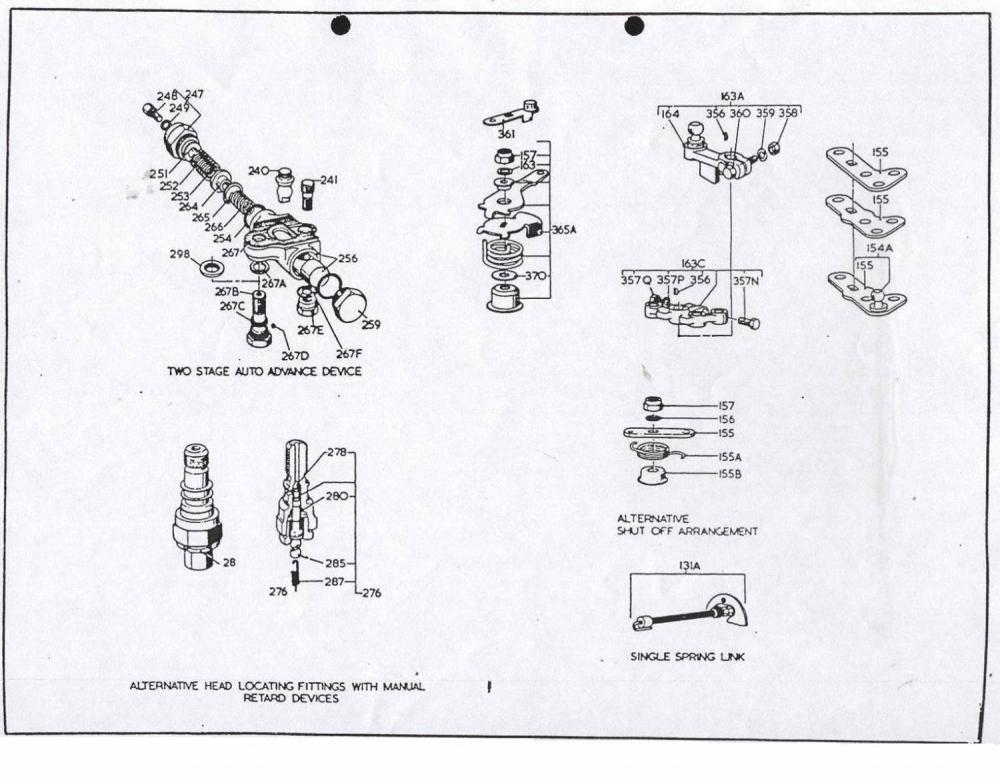

Long tractors were manufactured with two, three (engine model D-115) and four (engine model D-127) cylinder engines. Drawings of fuel equipment

Tractor Universal UTB V 445 technical specifications, device features and price

Universal UTB V 445 is a Romanian tractor, one of the closest competitors to Soviet-made MTZ tractors. The machine has a compact layout, and is made from the technical solutions carried out.

Specifications

• Production - Romania
• Start of production - 1981
• Drive type - rear, full (depending on modification)
• Engine type - diesel, three-cylinder
• Cooling type - liquid
• Piston diameter - 95 mm
• Piston stroke - 110 mm
• Power - 45 horsepower
• Direct fuel injection yes
• Rotational speed - 2400 rpm (in nominal mode)
• Torque - 130 N/m
• Starter parameters - 12 V
• Mounted implement type - three-point hitch with rear lift weighing 1696 kg
• Front power take-off - independent, up to 540 rpm
• Wheelbase - 1920 mm
• Weight - 2041 kg
• Rear / front wheel parameters: 7.5-16 / 16.9-28
• Gearbox - mechanical
• Number of forward speeds - 6
• The number of reverse gears is 2.
